Throttle Valve

High-Performance Throttle Valves for Precision Flow Control
(API 6A/ANSI Certified | 15K PSI Rated | Multi-Stage Throttling)

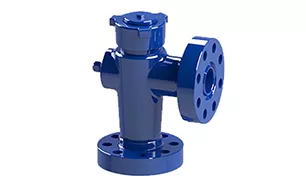

Product Overview

Our throttle valves deliver ultra-precise fluid regulation for oil & gas, power generation, and marine systems, covering 2-1/16" to 5-1/8" sizes. Featuring cemented carbide wear-resistant components (integral/inlaid/spray-welded), these valves ensure long service life in abrasive and high-velocity flows. Available in 5 configurations including needle-adjustable and sleeve-adjustable designs.

Key Features & Benefits

1. Robust Construction for Extreme Conditions

• Pressure Range: 2,000–15,000 PSI with K-X temperature rating (-75°F to 350°F).
• Wear Resistance: Carbide-reinforced throttling elements reduce erosion by 60% vs. standard alloys.
• Material Grades: AA-HH alloys (optional NACE MR0175-compliant grades for sour service).

2. Precision Flow Control Technology

• Multi-Stage Throttling: Minimizes cavitation and noise in high-ΔP applications.
• Adjustable Designs:
  • Needle Valve: Fine-tuned flow adjustment (±2% accuracy).
  • Sleeve/Plunger Valves: For rapid flow modulation in wellhead control.

3. Compliance & Customization

• Certifications: API 6A PSL1-PSL3G, PR1/PR2 Performance Level.
• Actuator Options: Manual, pneumatic, or IoT-enabled electric actuators for remote monitoring.

Technical Specifications

CTA: Download our flow control whitepaper or request a custom-engineered solution!
