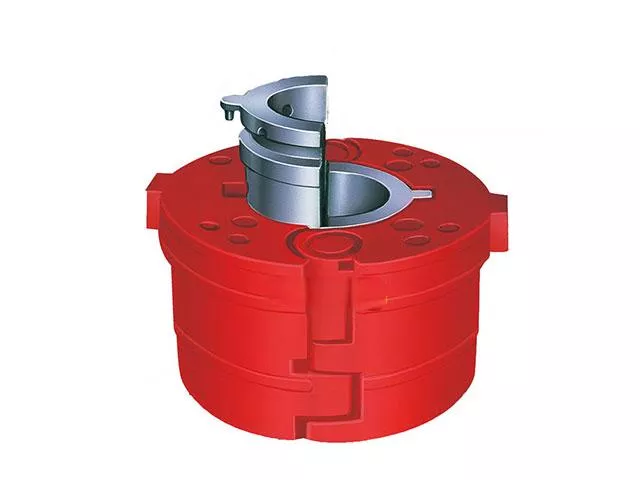

MPCH Master Bushing
Product Overview: Turntable Cores and Linings for Oilfield Applications
Our factory manufactures a wide range of high-quality turntable cores and linings, designed to meet the demanding requirements of the oilfield industry. Made from durable alloy steel castings, these products are available in sizes ranging from 17 1/2 inches to 49 1/2 inches. All dimensions adhere to API Spec 7K, ensuring superior performance and reliability.
We offer both integral and split structures, with distribution drive and square drive types, which are compatible with API standard drill pipe slips, drill collar slips, casing slips, or roller cores. These versatile products provide excellent performance and safety in challenging drilling environments.
Key Features & Benefits:
-
Durable Alloy Steel Castings: Ensures longevity and resistance to wear, reducing maintenance costs.
-
API Spec 7K Compliance: Meets industry standards for performance and safety.
-
Versatile Compatibility: Compatible with various rig systems, including drill pipes, collars, and casing slips.
-
Multiple Sizes Available: Sizes range from 17 1/2 inches to 49 1/2 inches to suit various applications.
-
Customizable Options: Available in both solid and split structures to meet specific operational needs.
Rotary Table Sizes and Tubular Compatibility:
| Model | Rotary Table Size (in) | Insert Bowl | Tubular OD (in) |
|---|---|---|---|
| MSS (Solid) | 17 1/2 - 23 | Insert bowl 1011 | 2 3/8 - 7 5/8 |
| Extended insert bowl 1024 | 2 3/8 - 8 5/8 | ||
| 27 1/2 | Insert bowl 1022 | 2 3/8 - 7 5/8 | |
| Extended insert bowl 1025 | 2 3/8 - 8 5/8 | ||
| Insert bowl 1026 | 9 5/8 - 10 3/4 | ||
| Insert bowl 2002 | 11 3/4 - 13 3/8 | ||
| MSS Split | 17 1/2 - 27 1/2 | - | 2 3/8 - 7 5/8 |
| MSPC (Solid) | 20 1/2 - 22 1/2 | Insert bowl 1809 | 2 3/8 - 8 5/8 |
| Insert bowl 1902 | 9 5/8 - 10 3/4 | ||
| Master Bushing 1805-1 | 11 3/4 - 13 3/8 | ||
| Master Bushing 19333 | 11 3/4 - 13 3/8 | ||
| MPCH | 37 1/2 | No. 3 Insert bowl 6608 | 2 3/8 - 8 5/8 |
| 49 1/2 | No. 2 Insert bowl 6609 | 9 5/8 - 10 3/4 | |
| Insert bowl 6610 | 11 3/4 - 13 3/8 | ||
| MDSP (Split) | 17 1/2 - 20 1/2 | - | 2 3/8 - 8 5/8 |
| MSP (Split) | 27 1/2 | - | 2 3/8 - 8 5/8 |
Why Choose Our Turntable Cores and Linings?
-
High-Quality Materials: We use top-grade alloy steel for all our turntable cores and linings to ensure exceptional strength and longevity.
-
API-Compliant: Our products meet or exceed API Spec 7K standards, guaranteeing reliability and performance.
-
Efficient Pipe Handling: Whether you need solid or split structures, our products offer smooth, safe, and efficient pipe handling.
-
Customizable Options: With a wide range of sizes and insert bowl options, we can accommodate your unique operational needs.
For more details or to place an order, contact our team today. We are dedicated to providing solutions that enhance your oilfield operations with durable, high-performance equipment.
