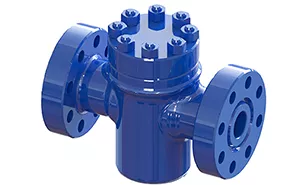

Check Valve

High-Temperature Expansion Valves for Extreme Service Conditions
(API 6A/PSL3G Certified | 15K PSI Rated | Carbide-Sprayed Seals)

Product Overview

Our high-temperature expansion valves (2-1/16" to 7-1/16") are engineered for thermal expansion control in oil & gas, power plants, and chemical processing systems. Featuring metal-to-metal carbide-sprayed seals, these valves withstand abrasive/corrosive media while maintaining leak-proof performance from -75°F to 350°F.

Key Features & Benefits

1. Robust Construction for Harsh Environments

• Pressure Range: 2,000–15,000 PSI with K-X temperature rating (API 6A compliant).
• Wear Resistance: Cemented carbide-sprayed valve plates/seats extend service life by 3x in erosive flows.
• Material Grades: AA-FF alloys (optional NACE MR0175 grades for sour gas).

2. Precision Thermal Management

• Metal Seal Design: Zero-leak performance during thermal cycling and high-ΔP conditions.
• Low-Torque Operation: Optimized for rapid response in emergency shutdown scenarios.

3. Compliance & Customization

• Certifications: API 6A PSL1-PSL3G, PR1/PR2 Performance Level.
• Actuator Options: Manual, pneumatic, or hydraulic actuators for automated control.

Technical Specifications

CTA: Request thermal performance data or configure a valve for your specific ΔT/ΔP requirements!
